Back-up



Copy a user profile (including data)



This copies the user profile information and all the user data (batches, runs ...) linked to that profile; this includes any library data linked to the user profile.



- Move to the profile to back-up



At the main screen:-

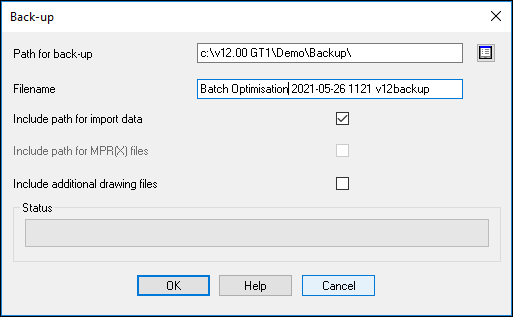

 Select: File - Back-up - Current user

or

Select the Toolbar icon (File Toolbar)



(Note that the include additional drawing files option is only available to back up batch)



- Check the path for back-up (edit if required)



(The default is set by the System parameter: Path for Back-up)



Click on the list button to browse the paths and folders



- Check the file name (edit if required)



- Include path for import data - If this is checked then the path for import data will be included in the backup.



- Include path for MPR(X) files - If this is checked then the path for MPR(X) files will be included in the backup.



- Include additional drawing files - If this is checked then any additional drawing files (MPR(X) or DXF) will be included in the backup.



- OK to confirm



The other options are:-



Help - information about this dialog

Cancel - abandon changes



The data is copied to a single file (BKP). This is a zipped file containing all the files in a compressed form. When back-up is complete program prompts with a message showing number of files and overall size.





 OK to finish





Settings



The operation of the back up is controlled by the system parameters:-



Path for Back-up           e.g. C:\MYV9BACKUPS

Back-up Interval (days)    e.g. 7



Data



Data can often be split over several different directories. For example:-



C:\OPT\USER1

N:\OPTIMISING\LIBRARIES

C:\OPT\USER1\CUSTOMER



The program uses the System parameters for the User profile to locate the data to Back-up including Library data. Back-up covers the following Paths:-



User profile

Path for Data

Path for Part lists

Path for Library data

Path for Stock libraries

Path for Customer data

Path for Pictures

Path for forms / labels

Path for import data

Path for MPR(X) files



The name of the BKP file is based on the date and time and is stored in the: Path for Back-up



e.g. 2015-03-29 1118 V9BACKUP.BKP



All files from these directories are backed up except for file extensions. ARX, DLL, EXE, HLP, LNG, ISU.





Notes



- If an alternative directory is selected this is only used for the current back-up and does not change the System parameter: Path for back-up



- The Back-up file name is a maximum of 50 characters and cannot contain commas or stops



- Before a back-up is undertaken the program checks for and reports any open files. To continue with the back-up close the open files are retry the back-up.



- The include additional drawing files option is only available to back-up batch
