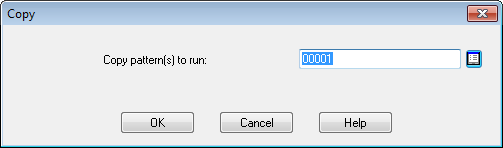

Dialog for saving selected patterns as a new run
At the pattern sequence screen a set of patterns can be selected and saved as a new run. Once the set is created select 'Copy' at the Pattern sequence screen to create the new run. The program prompts for the run name.
● Confirm the run number or enter a new number or name
● Select OK to begin the copy
The copy process makes full copies of part and boards lists creates a run with the selected patterns and updates the last run number in the System parameters. The run is not added to the existing batch. The parts in each pattern retain their original items numbers. The original run is NOT affected.
list
of existing runs
Runs are copied to the 'Path for data'.
If a run already exists the program prompts to confirm the overwrite. The original run file cannot be used or overwritten as it is still in use.
See: Pattern sequence
Other options
Cancel - do not copy
Help - information about this dialog
The pattern sequence screen is used to rearrange the order of patterns, remove patterns, or create a new run by copying selected patterns. At the Review runs screen:-
