Set the rule(s) for determining whether the condition applies
● Enter the rule in the box
Click on the button to pop up the Condition dialog
(Move to or click on the field to pop up the button)

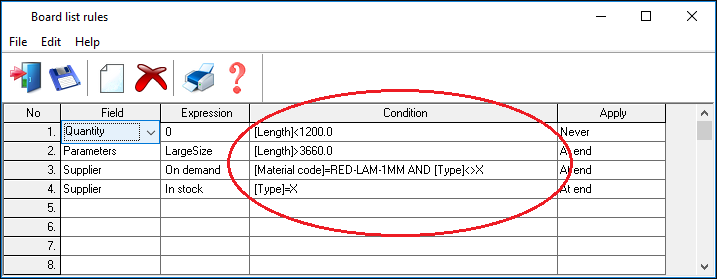

Each rule has the format: field, condition, value.
For example:-
[Material code]=RED-LAM-1MM AND [Type]<>X
Field codes
The field codes are the fields from the Board list (except the Material picture field).
Condition
This can be one of following logical/mathematical symbols.
> greater than
>= greater than or equal to
= equal to
<= less than or equal to
< less than
<> not equal to
:: contains
Value
This can be any fixed value or text:-
35.0
MDF-15
'MDF-15'
The value can also be another field
[Length]
[Width]
See help topic: Board list rules Overview
