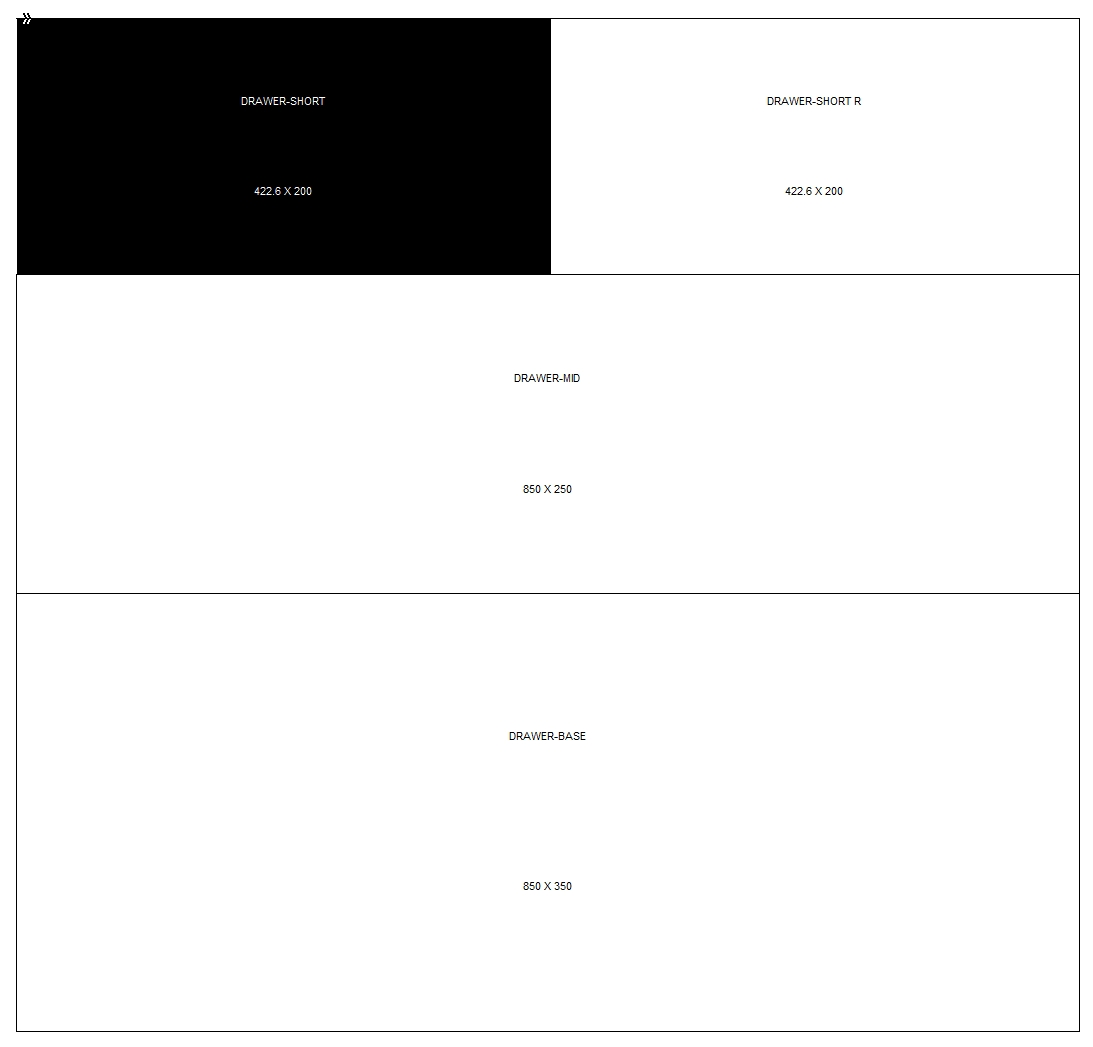

Template picture example



How to use the Information box 'Template picture file name'

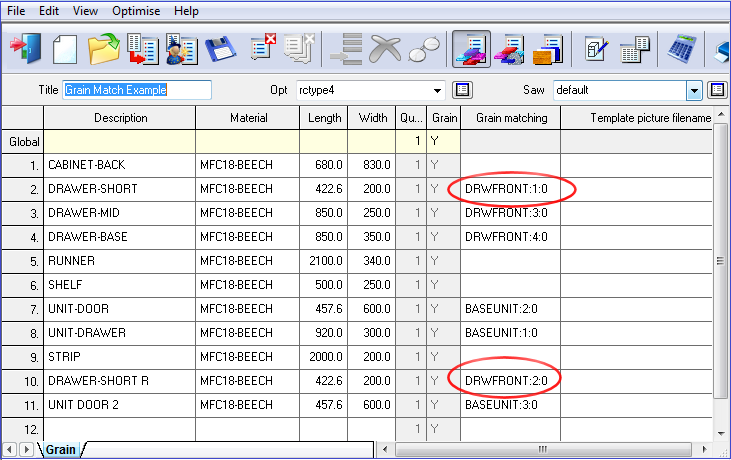

Where parts are assigned to a template via the 'Grain matching' information box an associated information box 'Template picture file name' can be set to produce a bit map image of the parts in the template. By including this on the part label this can help to match up the parts for assembly or later production processes.



To do this go to (Main screen - Parameters - Information boxes) and select the 'Template picture file name' as one of the information boxes.



- At the part list leave the Template picture file name box blank






- Optimise

- Transfer to saw (this option only applies to '6 - Homag/Holzma CADmatic 3/4/5' transfer mode)



The picture files are located in a sub folder named 'bitmaps' of the saw folder.


There is a file for each part in a template.



See:-

Information box parameters - Overview

Grain matching - Overview

Template picture file name
