Option at Pattern library to set information patterns
Use these values to set how information on a pattern is shown.
- Select: File - Parameters
- Select: Options

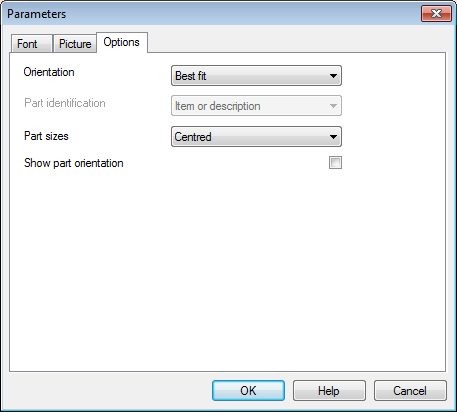

Use the settings to adjust how patterns are shown, for example, 'Show part orientation' places an indicator on each part to show whether the part orientation in relation to the board is 'length to length' or 'width to length.
See the topics below for details on each setting.
Show orientation (pattern library)
Pattern library parameters - Overview
